Inserts

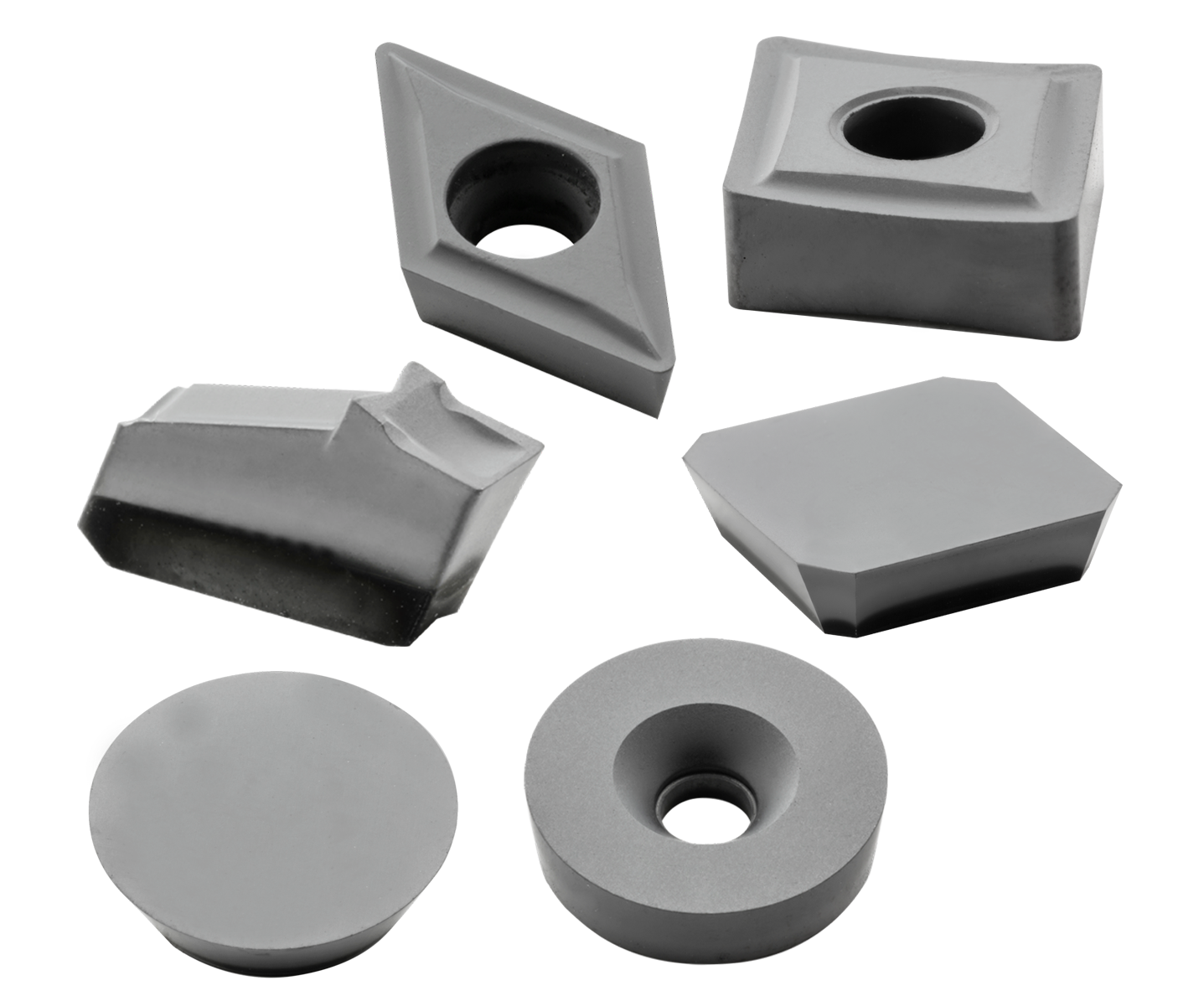

DIAbide CVD diamond coated inserts are available in ANSI/ISO standards. We also do a very strong business in special diamond coated inserts.
Dimensions are in inches
| Part/EDP Number | ANSI Description | ISO Description | I.C. |
|---|---|---|---|
| 16107-D38 | CCMT-21.51 | CCMT-060204 | 1/4 |
| 16108-D38 | CCMT-21.52 | CCMT-060208 | 1/4 |
| 16109-D38 | CCMT-32.51 | CCMT-09T304 | 3/8 |
| 16110-D38 | CCMT-32.52 | CCMT-09T308 | 3/8 |
| 16118-D38 | CNMP-431 | CNMP-120404 | 1/2 |
| 16119-D38 | CNMP-432 | CNMP-120408 | 1/2 |
| 16155-D38 | DCMT-21.52 | DCMT-070208 | 1/4 |
| 16156-D38 | DCMT-32.51 | DCMT-11T304 | 3/8 |
| 16157-D38 | DCMT-32.52 | DCMT-11T308 | 3/8 |
| 16159-D38 | DNMP-431 | DNMP-150404 | 1/2 |
| 16160-D38 | DNMP-432 | DNMP-150408 | 1/2 |
| 16274-D38 | TCMT-21.51 | TCMT-110204 | 1/4 |
| 16275-D38 | TCMT-21.52 | TCMT-110208 | 1/4 |
| 16276-D38 | TCMT-32.51 | TCMT-16T304 | 3/8 |
| 16277-D38 | TCMT-32.52 | TCMT-16T308 | 3/8 |
| 16324-D38 | TPG-221 | TPG-110304 | 1/4 |
| 16326-D38 | TPG-222 | TPG-110308 | 1/4 |
| 16327-D38 | TPG-321 | TPG-160304 | 3/8 |
| 16328-D38 | TPG-322 | TPG-160308 | 3/8 |
| 16331-D38 | TPG-431 | TPG-220404 | 1/2 |
| 16332-D38 | TPG-432 | TPG-220408 | 1/2 |
| 16336-D38 | TPGH-221 | TPGH-110304 | 1/4 |
| 16337-D38 | TPGH-321 | TPGH-160304 | 3/8 |
| 16338-D38 | TPGH-322 | TPGH-160308 | 3/8 |
| 16366-D38 | VBMT-331 | VBMT-160404 | 3/8 |
| 16367-D38 | VBMT-332 | VBMT-160408 | 3/8 |
| 16368-D38 | VBMW-331 | VBMW-160404 | 3/8 |
| 16381-D38 | VNMP-331 | VNMP-160404 | 3/8 |
| 16382-D38 | VNMP-332 | VNMP-160408 | 3/8 |
