Products > Cutter Bodies > Ultra-Mill Intermediate Shell Mill Cutter Body > UMI-50MM-8-1A/S

Part Number # UMI-50MM-8-1A/S

Ultra-Mill Intermediate Shell Mill Cutter Body

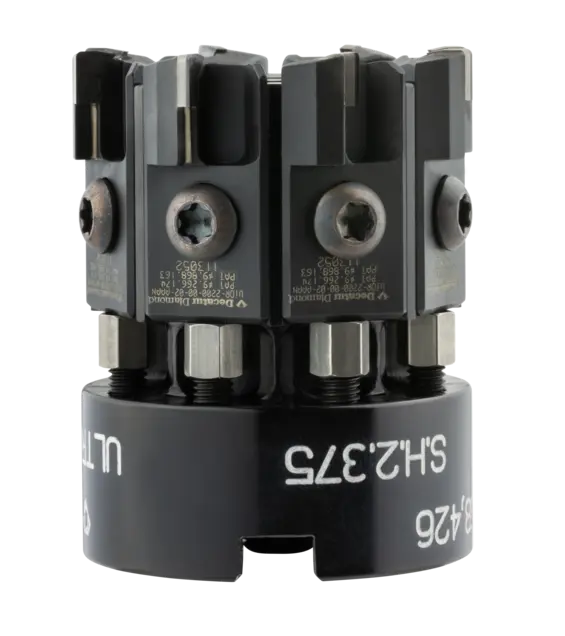

Product Image
  • Effective Cutting Diameter: 50
  • Number of Pockets: 8
  • Bore Diameter: 16
  • Set Height: 60
  • Key Size: 8
  • Max RPM: 17.000

EDP Number Aluminum: 46368-01

EDP Number Steel: 46370-01

Speeds and Feeds

Customize Tool

Coolant Screws and Shower Caps

Cartridge Selection

Miscellaneous Adjustment Tools

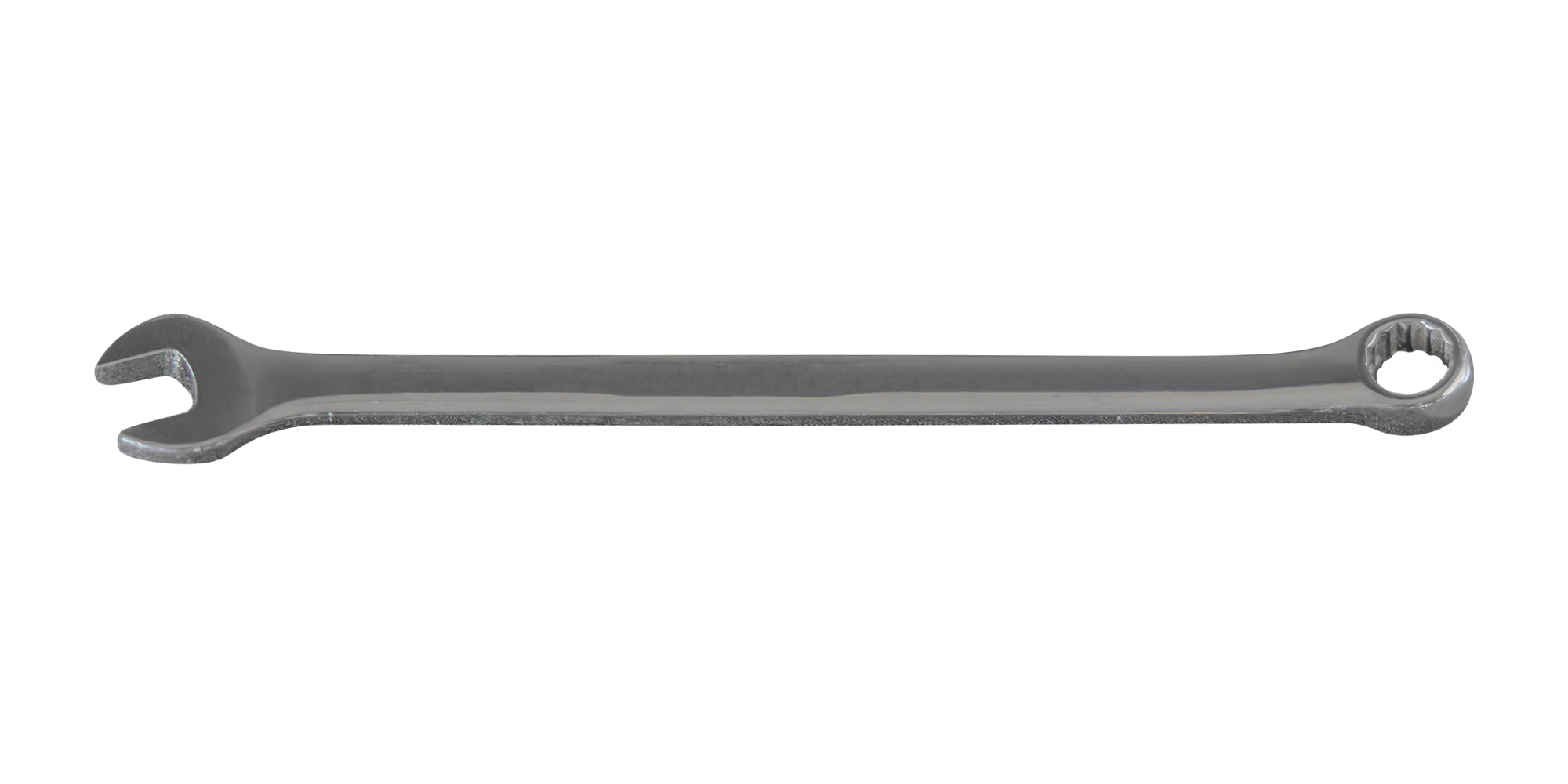

6mm & 7mm Cartrdige Adjustment Wrench

63605

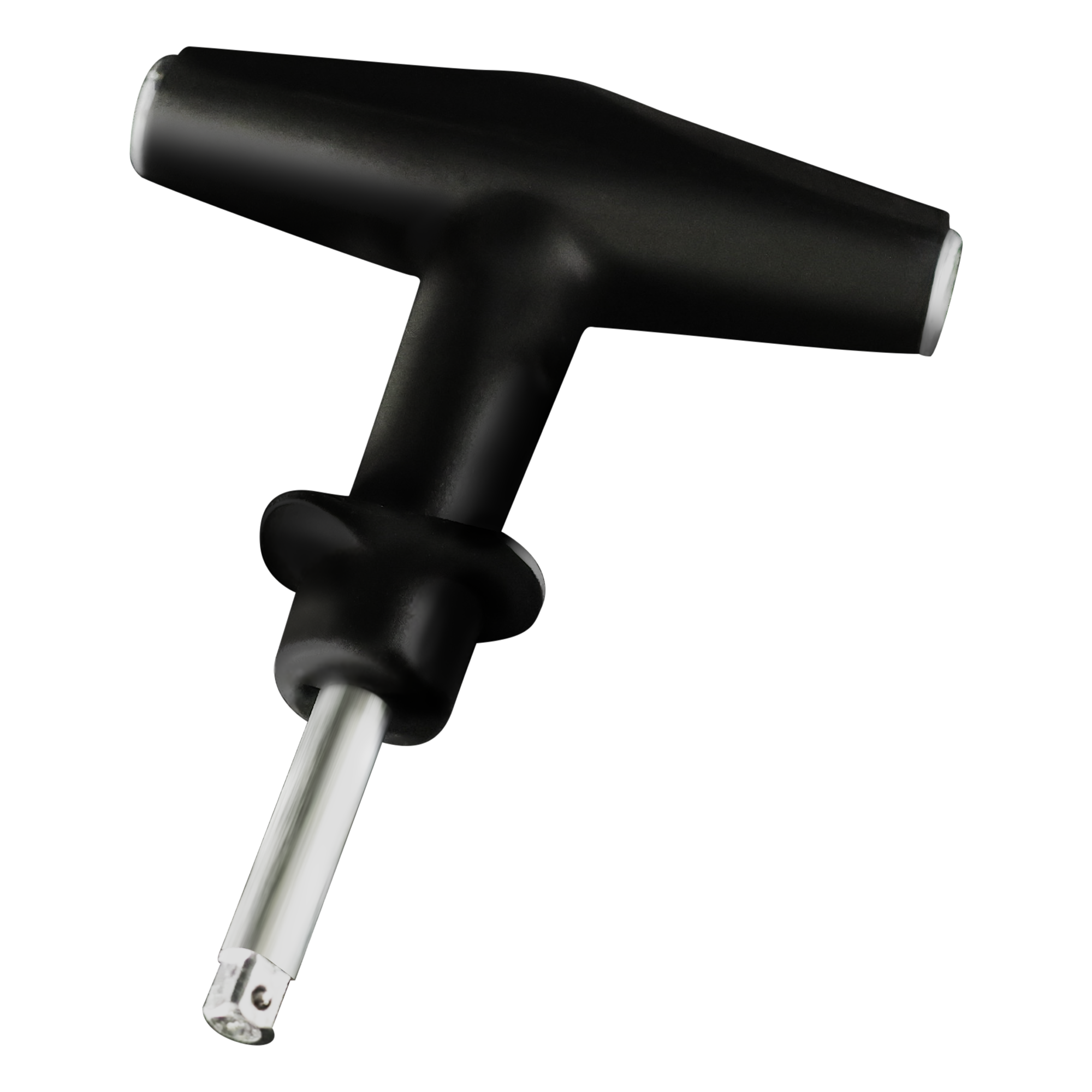

Pre-set 50 in/lbs Torque Wrench

63606

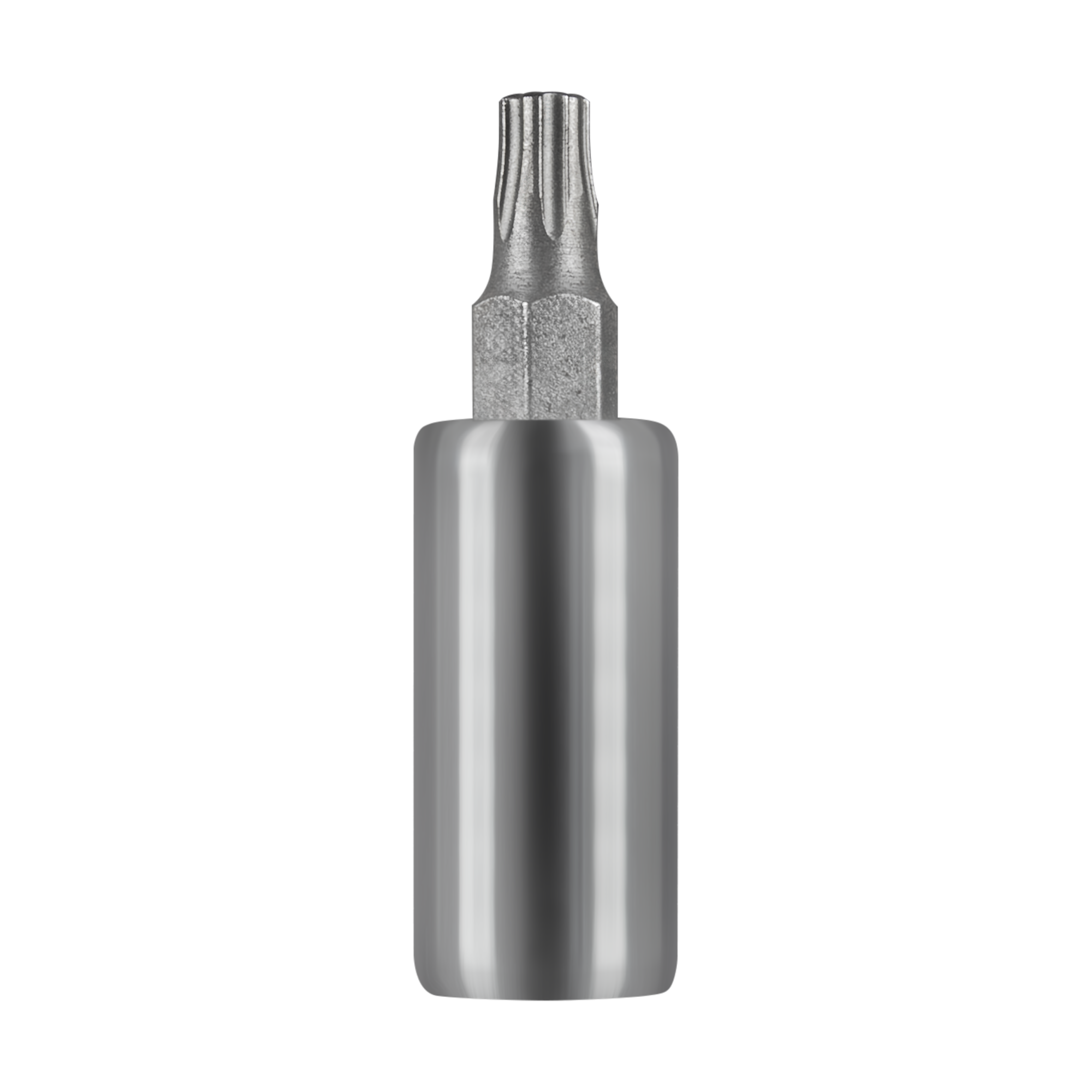

Replacement T-25+ 1/4" Drive Socket

63616

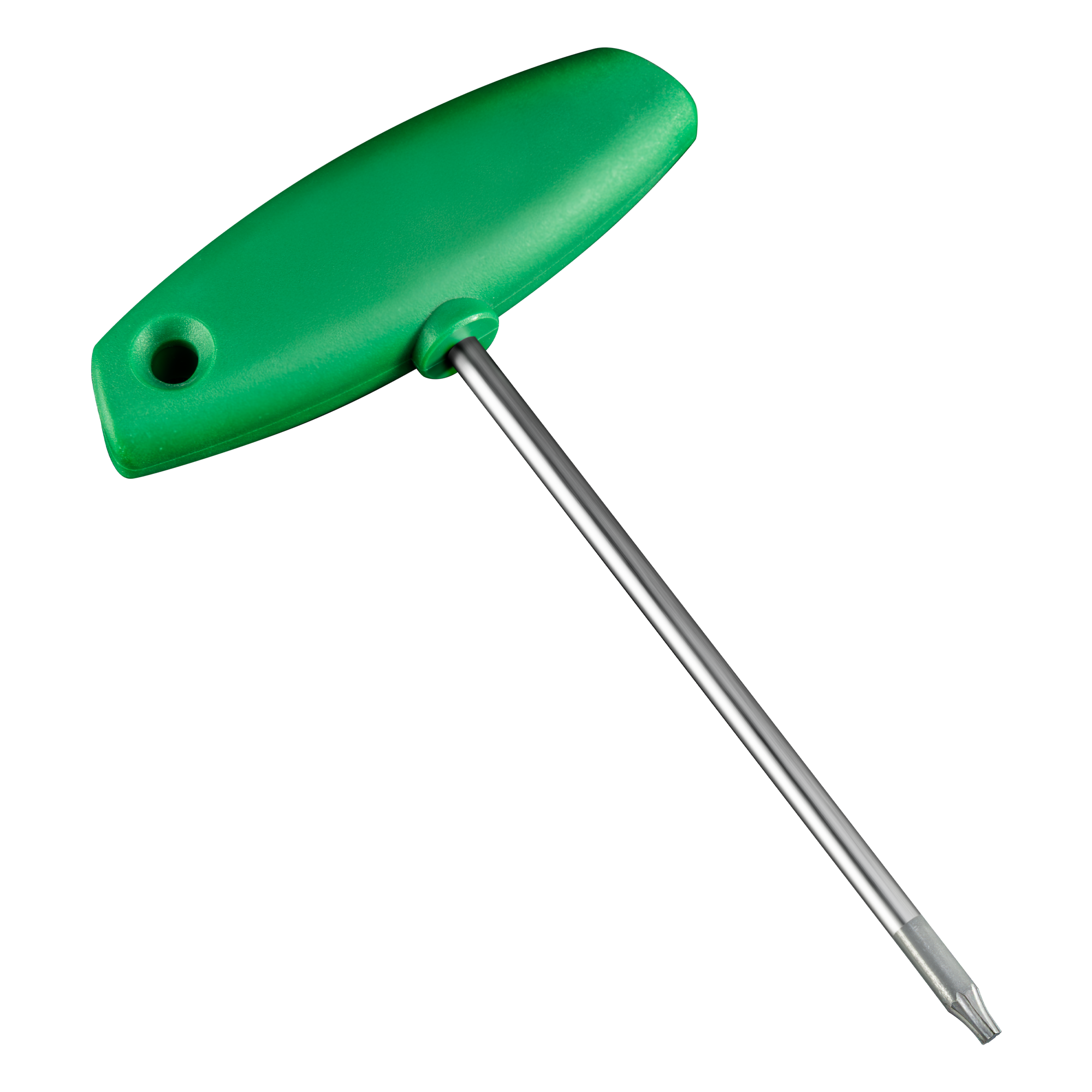

Torx T-25+ T-Handle Wrench

63611

UMIPP - Pocket Protector

63351

Hardware

Ultra-Mill Intermediate 63.0mm using Ulxx cartridges

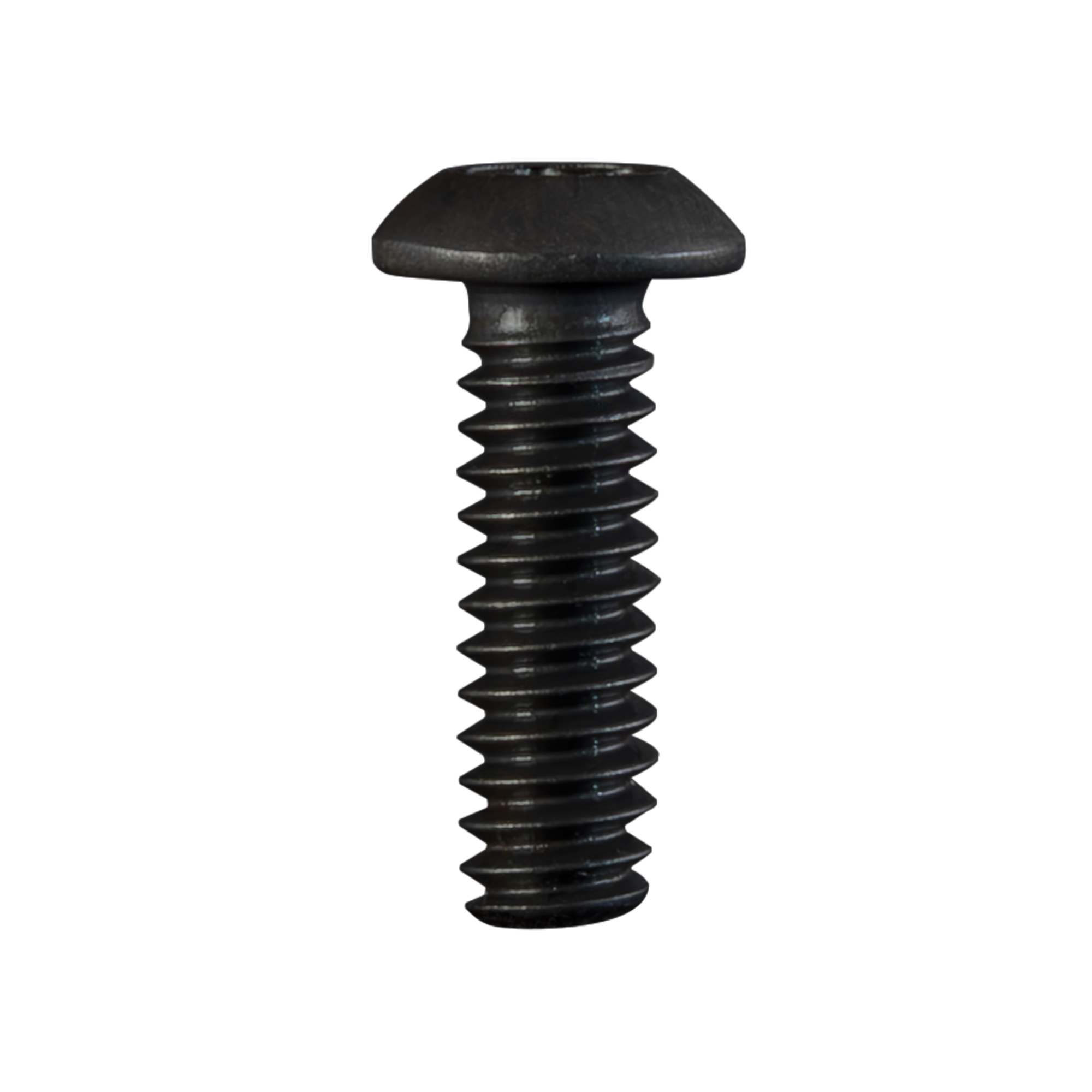

Cartridge Mount Screw

63536

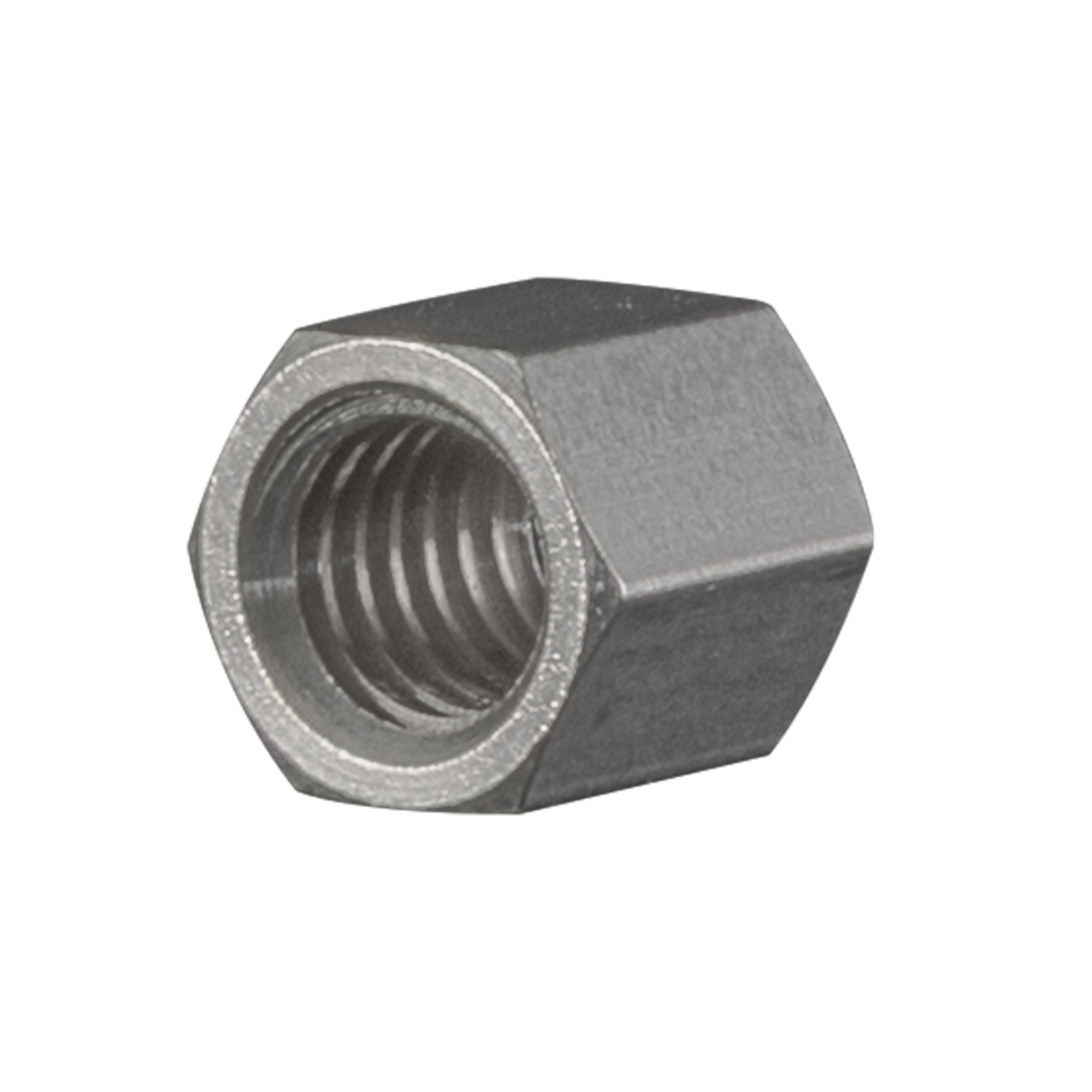

Cartridge Adjustment Nut

63520

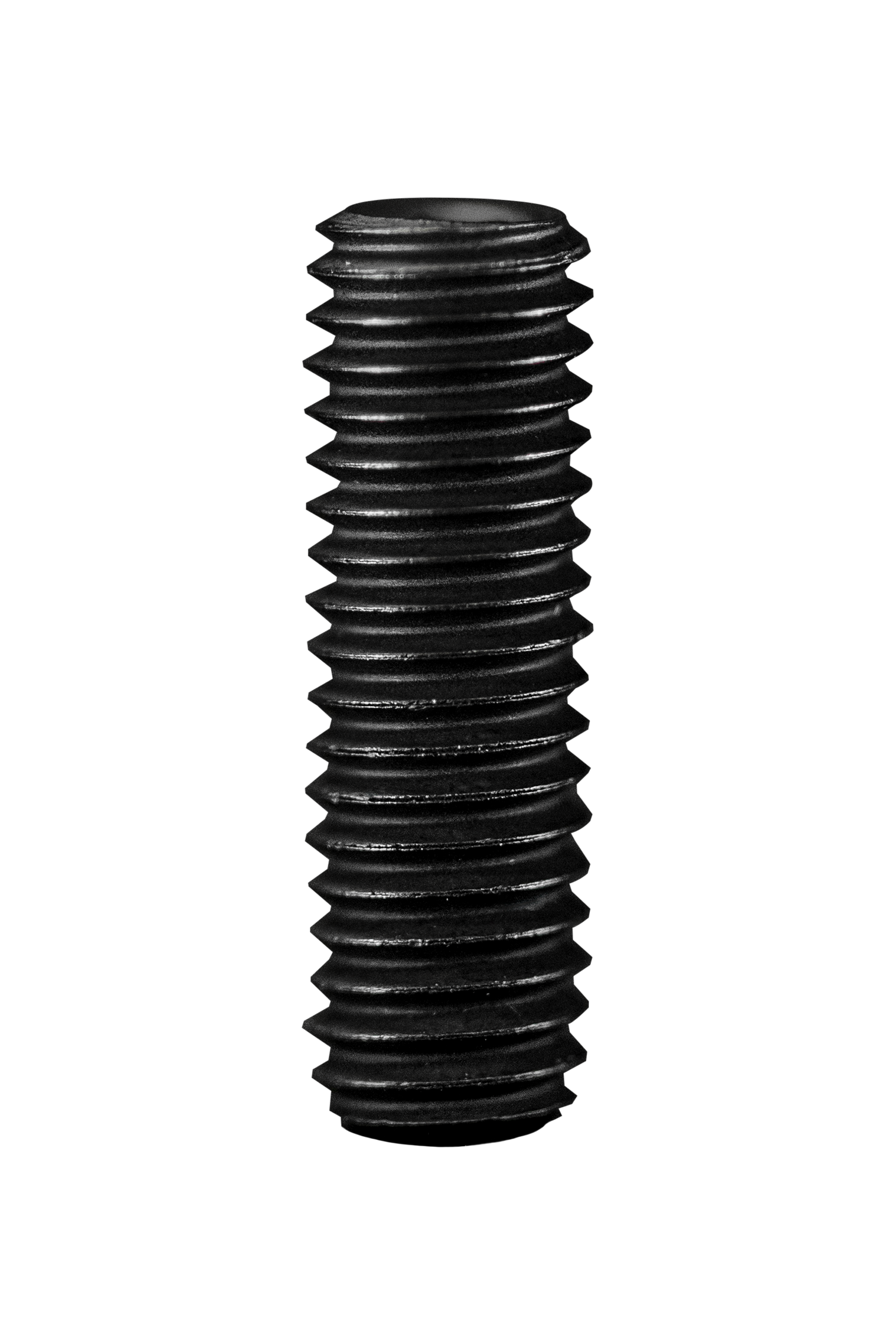

Stud for Adjustment Nut

63522
